From RAG to Enterprise-Grade RAG Part 06 | Why Retrieval Decides RAG Quality More Than the Model Does

A concrete failure case

There was a query early in this project that the system kept getting wrong:

“How does the early termination clause in this Q3 contract work, and what is the penalty?”

Vector search found the right file — mou_2025_003.pdf was in the top three. But the LLM answered: early termination takes 30 days written notice, penalty is whatever the two parties agree.

The contract actually says it clearly: early termination needs 60 days notice and the penalty is 6 months of subscription fees. The file was found, the answer was still wrong.

Why? Walking the trace showed that vector search pulled in the “scope of collaboration” and “payment terms” sections of the MOU — both in the top five — but the LLM never saw the third section, which is the one that explicitly covers early termination and the penalty. Why not? Because the dense embedding of “early termination penalty” was closer to the embedding of the “scope of collaboration” paragraph than to the dense embedding of that third section.

Put differently: a dense vector captures “semantic similarity”, not “the ability to actually answer this question”. Close in vector space ≠ the paragraph can answer the query. Vector search has no notion of “right” or “wrong”; it only computes “how alike” — and that gap is the root cause of naive RAG’s systematic failure.

This is the ceiling of pure vector search: it finds “related” documents, but not necessarily the “right” passage.

---

”Found it” and “answered it well” are two different things

Vector search finds semantic neighbours, not actually answerable content.

Naive RAG collapses the two into one step: pull the top 5, feed them to the LLM. In production that assumption almost always breaks — you either get “semantically near but unable to answer” or “the answer is in there but the vector is too far to be retrieved”.

The retrieval layer sets the ceiling on answer quality, not the LLM. No matter how strong the LLM is, if retrieval feeds it the wrong passage, it can only generate an answer based on the wrong passage. Swapping in a bigger model does not save you — if retrieval misses, no model can recover it.

This project puts 70% of its effort into the retrieval layer (hybrid search, reranking, parent expansion, context compression, citation assembly) — that is what it takes to get “found it” right. The LLM side is 30%.

---

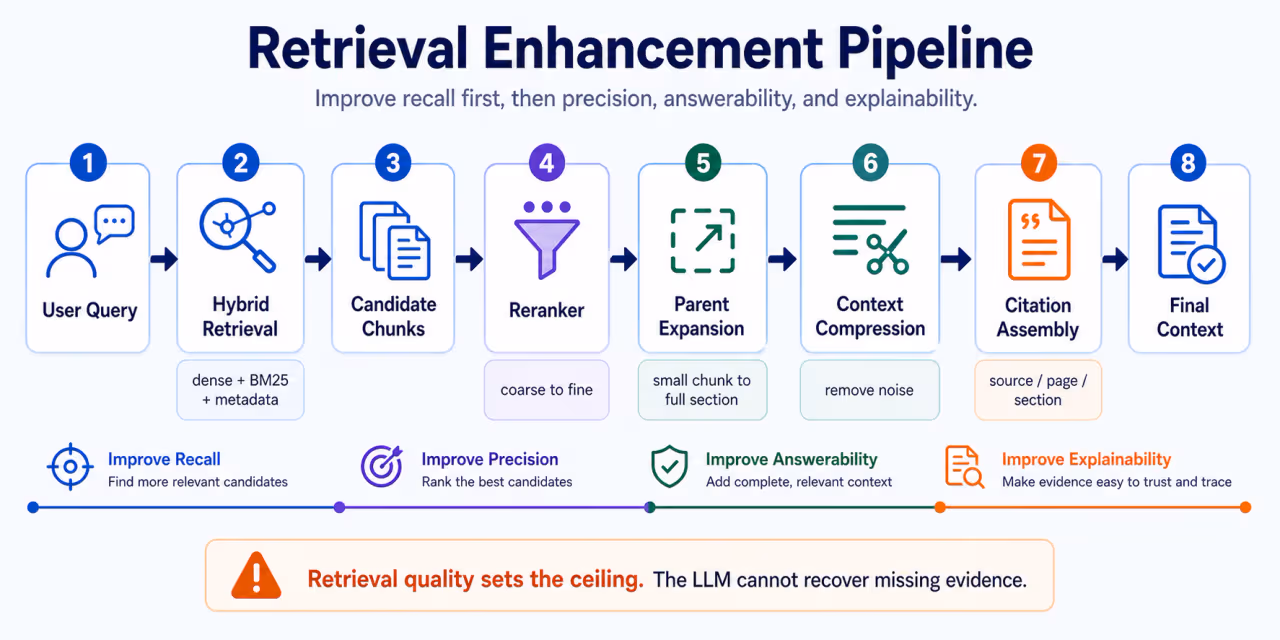

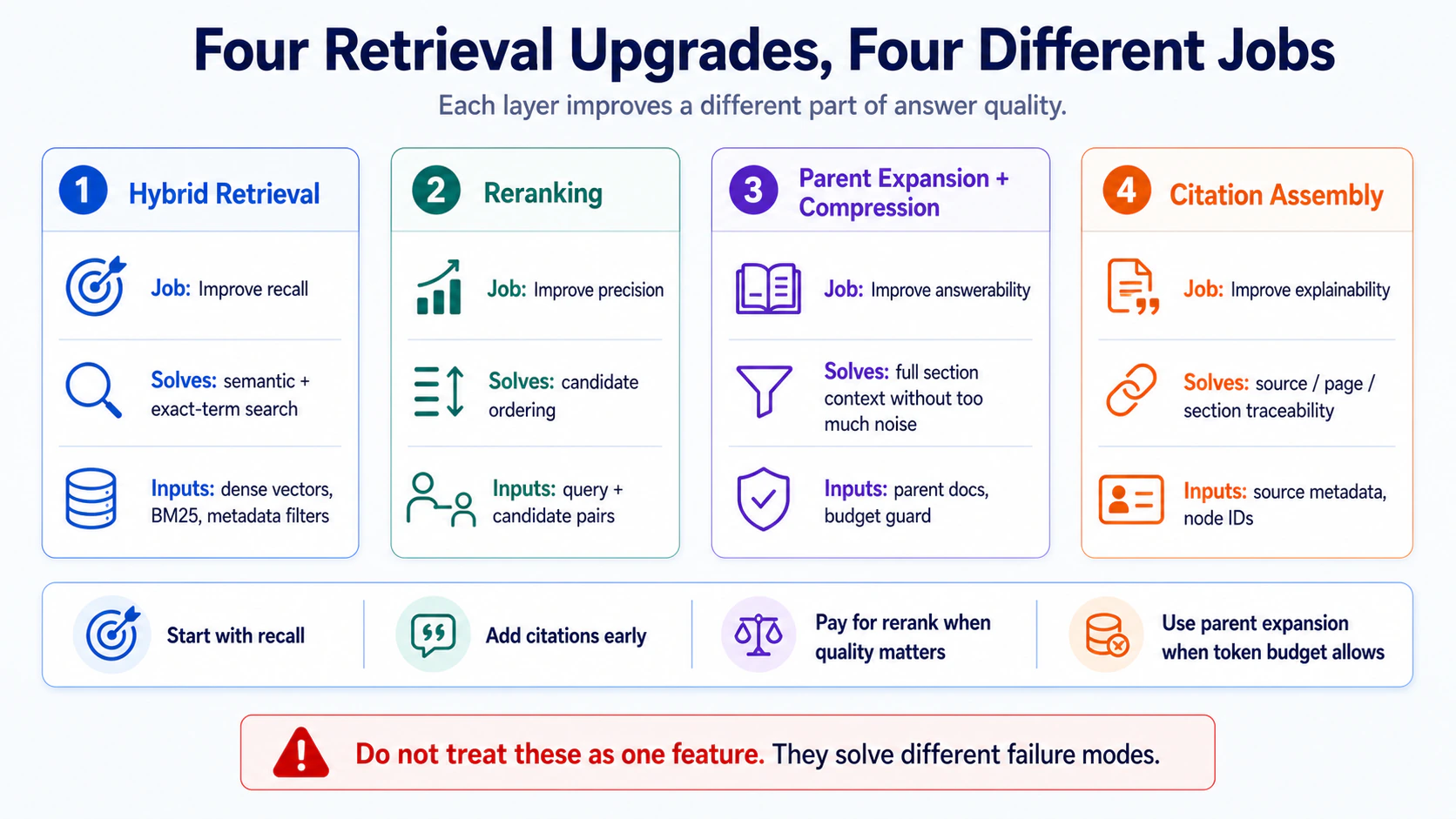

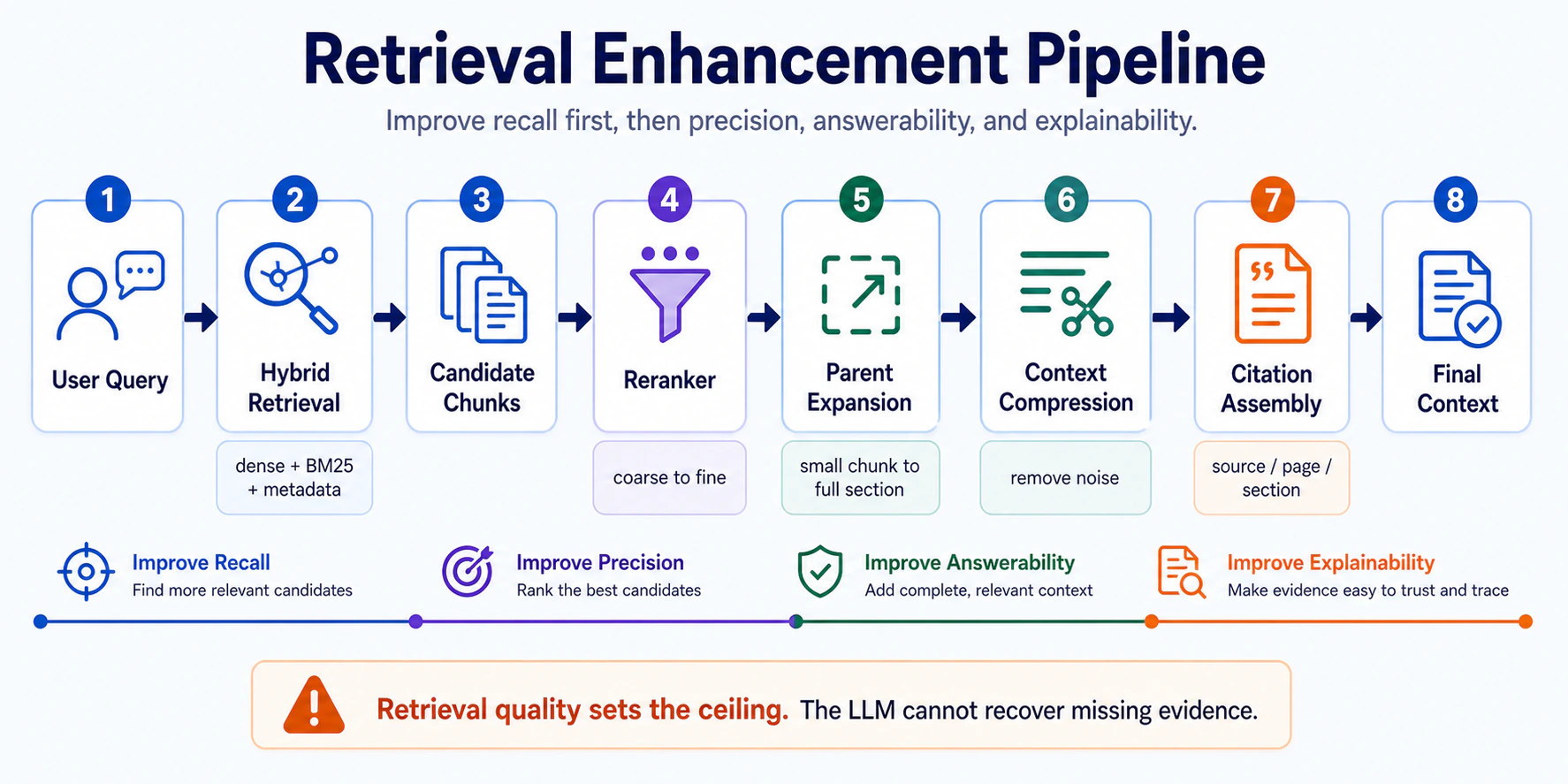

Four retrieval upgrades this project added

Pure vector search is not enough. With the four upgrades below, the early-termination query above finally got answered correctly.

Upgrade 1: hybrid retrieval (dense + BM25 + metadata)

Dense vectors catch semantics, BM25 catches exact strings, metadata filters narrow the scope. All three run together, then RRF (Reciprocal Rank Fusion) merges the rankings.

Creating the hybrid collection (Qdrant named vectors):

from qdrant_client import QdrantClient
from qdrant_client.http import models

def create_hybrid_collection(client: QdrantClient, name: str) -> None:
    client.create_collection(
        collection_name=name,
        vectors_config={
            "dense": models.VectorParams(size=384, distance=models.Distance.COSINE),
        },
        sparse_vectors_config={
            "sparse": models.SparseVectorParams(index=models.SparseIndexParams()),
        },
    )

Query side via the LlamaIndex Qdrant integration:

from llama_index.vector_stores.qdrant import QdrantVectorStore

def get_hybrid_store(client: QdrantClient, name: str) -> QdrantVectorStore:
    return QdrantVectorStore(
        client=client,
        collection_name=name,
        enable_hybrid=True,                # dense + sparse built together
        fastembed_sparse_model="Qdrant/bm25",
        hybrid_fusion_fn="rrf",            # Reciprocal Rank Fusion
        # plus metadata filters: document_type, language, tenant_id
    )

Why BM25 is not optional. The same query, asked different ways:

Query	Dense vector	BM25
”How does early termination work in this Q3 contract”	medium (semantically near)	strong (hits early termination)
GET /users/me/profile	weak (pure string)	strong (exact match)
INV-2025-003	weak	strong
”What is the procedure to terminate the contract”	strong	weak (does not hit “terminate”)

Dense is strong where BM25 is weak, and BM25 is strong where dense is weak. Production is not either/or. Early RAG systems ran dense-only search; when they failed, 9 times out of 10 the failure was dense search missing an exact-string clause that should have been retrieved.

The Chinese + BM25 trap. A lot of BM25 setups default to English tokenisation; Chinese needs extra handling. The LlamaIndex Qdrant hybrid integration uses the Qdrant/bm25 model through FastEmbed, but the Chinese tokenisation is uneven. In practice, verify that the sparse vector is actually non-zero:

import jieba
from fastembed import SparseTextEmbedding

# Chinese tokenisation + BM25 sparse vector verification
sparse_model = SparseTextEmbedding(model_name="Qdrant/bm25")

def chinese_tokenize(text: str) -> list[str]:
    return [t for t in jieba.cut(text) if len(t.strip()) > 1]

# verify the sparse vector is actually hitting terms
query = "early termination 違約金"
sparse_vec = list(sparse_model.embed([query]))[0]
non_zero = sum(1 for v in sparse_vec.values if v > 0)
assert non_zero >= 3, f"BM25 Chinese tokenisation failed: {non_zero} non-zero (expected ≥3)"

Do not assume “hybrid” means Chinese works. Skip this verification and you will hit “hybrid also cannot find Chinese exact terms” in production.

Upgrade 2: reranking (coarse-to-fine)

Hybrid search pulls 50–200 candidates, the reranker uses a cross-encoder to re-score them, and the genuinely useful 5–20 float to the top.

A full query engine pipeline (hybrid + rerank + LongContextReorder + compression):

from llama_index.core.query_engine import RetrieverQueryEngine
from llama_index.core.postprocessor import LongContextReorder
from llama_index.postprocessor.cohere_rerank import CohereRerank
from llama_index.core.response_synthesizers import CompactAndRefine

postprocessors = [
    LongContextReorder(),    # put the most relevant chunks at the edges
    CohereRerank(top_n=8, model="rerank-english-v3.0"),
]

query_engine = RetrieverQueryEngine.from_args(
    retriever=retriever,
    node_postprocessors=postprocessors,
    response_synthesizer=CompactAndRefine(),
)

Why rerank on top of hybrid? RRF after hybrid is a coarse merge — it fuses multiple ranked lists, but the reranker’s cross-encoder (query, candidate) comparison is substantially more accurate than pure vector comparison. Hybrid + rerank together outperform either alone by 20-30%.

Mainstream options: Cohere Rerank (managed, ready in minutes), BGE reranker (self-hosted, cost under control), Jina / Voyage (multilingual or retrieval-heavy). Qdrant also has ColBERT / multivector options, but those are advanced — start with an external reranker.

Upgrade 3: parent-doc expansion + context compression

Small chunks are easy to search, large parents are good for answering. First use small chunks to locate, then pull the parent section back in.

from llama_index.core.schema import TextNode

async def expand_to_parent(node: TextNode, docstore) -> TextNode:
    """Swap a small retrieved chunk for its parent section."""
    parent_id = node.metadata.get("parent_id")
    if not parent_id:
        return node
    parent = await docstore.aget(parent_id)
    return parent or node

Compression filters out sentences that are not relevant to the query. Why it matters: cheaper tokens, less noise, fewer hallucinated citations — the benefit is most obvious when the underlying chunks are large.

Upgrade 4: citation assembly (custom citation mapper)

Bind every answer back to a source. This is not just showing “source [1]” to the user — it is what lets you verify what the LLM actually answered against.

from pydantic import BaseModel, Field
from typing import Optional

class CitationItem(BaseModel):
    marker: str = Field(..., description="Inline marker like [1]")
    file_name: str
    page_number: Optional[int] = None
    section_title: Optional[str] = None
    node_id: str
    text_preview: str
    retrieval_score: float = 0.0

def map_citations(response) -> list[CitationItem]:
    """Turn response.source_nodes into a frontend-ready citation list."""
    return [
        CitationItem(
            marker=f"[{i+1}]",
            file_name=node.metadata.get("file_name", "unknown"),
            page_number=node.metadata.get("page_number"),
            section_title=node.metadata.get("section_title"),
            node_id=node.node_id,
            text_preview=node.get_content()[:200],
            retrieval_score=float(node.score or 0),
        )
        for i, node in enumerate(response.source_nodes)
    ]

Why not just use LlamaIndex’s built-in CitationQueryEngine? This project’s context runs through Qdrant → reranker → parent expansion → compression → LongContextReorder → custom prompt before the LLM ever sees it. The actual sources that reach the prompt do not line up with response.source_nodes, and the built-in citation engine’s marker regex breaks after long-context reorder and marker substitution. That counter-example is a real one, not a theoretical risk. A custom citation mapper is the production-grade answer.

---

The specific trade-offs

More is not always better. Each layer has a cost — the numbers below come from this project’s actual measurements plus commonly cited industry baselines (not vendor guarantees):

Upgrade	Quality impact	Cost impact	Explainability impact
Hybrid retrieval	retrieval recall +20-30%	Storage 2x (dense + sparse vectors); query latency +50-100ms; Chinese needs extra tokenisation verification	medium (RRF merge is simple)
Reranking	top-k ordering accuracy +25-35%	Cohere Rerank $0.001-0.005 / query (per 1000 tokens); self-hosted BGE reranker adds GPU cost; latency +200-500ms	low (cross-encoder is a black box)
Parent expansion	answer completeness up; LLM citation-hallucination rate down	Token cost 5-10x (chunk grows from 100 chars to 1000); latency +100-300ms	high (traceable to section)
Context compression	noise down; hallucinated citations down	Small extra reranker call ($0.0001 / query); latency +50-150ms	medium (depends on compressor logic)
Citation assembly	answers become verifiable	low (pure mapping); latency +10-50ms	highest (direct link to source)

Budget-constrained ordering: hybrid retrieval first (finding anything is baseline) → citation assembly next (cheapest, highest explainability) → reranking after that (clear quality lift, but it costs) → parent expansion last (depends on token budget).

One more thing to keep in mind: upgrading the LLM has diminishing returns on answer quality, while every retrieval layer still has visible marginal upside. Once your LLM is GPT-4 class, another model upgrade gives less answer-quality lift than adding a rerank layer does — when the budget is tight, money on retrieval beats money on the LLM.

That is also why this project has run the same LLM settings from V0 through V3, and swapped out the retrieval layer four times — retrieval is where the gap opens up, and LLM upgrades are not where the budget should go next.

---

The interactive demo in Part 01 runs exactly this project’s production pipeline — you can take that early-termination query straight to the article page and watch the trace flow. Part 07 breaks down “the gap between production and demo” — faithfulness check, citation check, offline eval, Langfuse tracing, cost tracking. After the four retrieval upgrades in this piece, how do you actually measure how much they improve answer quality is the question Part 07 is built around. rag/retrieval.py, rag/compression.py and rag/citations.py are where these four upgrades live in the code.
